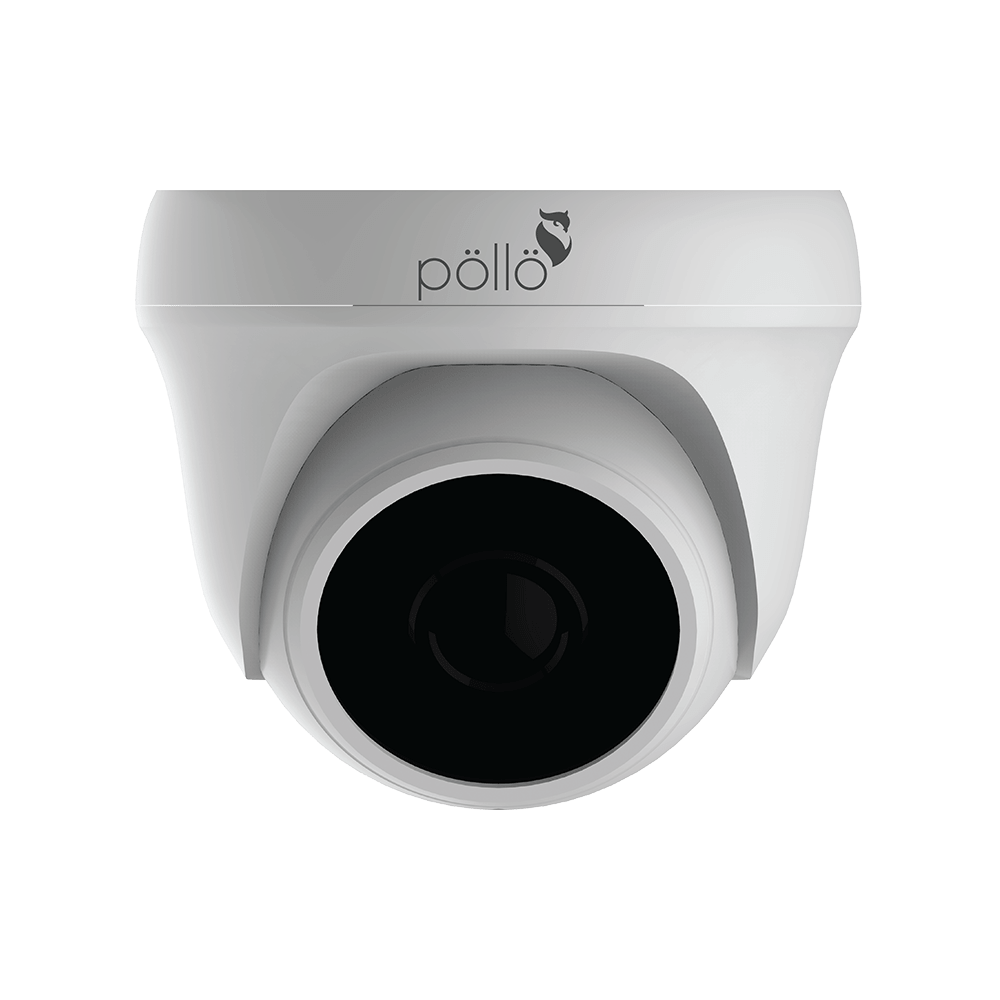

PLC-432P-IR2/PR

Model Number	PLC-432P-IR2 PR
Image Sensor	1/2.9" CMOS Sensor
Image Resolution	2 MP 1080p
Effective Pixels	1920 (H) * 1080 (V)
Video Compression	H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV System	PAL/NTSC
Electronic Shutter Time	Auto: PAL 1/25 - 1/10000 s; NTSC 1/25 - 1/10000 s
Min. Illumination	0.01 Lux
S/N Ratio	≥52 dB
Scanning System	Progressive
Video Output	Network
Reset Button	Optional
Focal Length	2.8 mm
Focus Control	Fixed
Lens Type	Fixed
Pixels	2MP
Infrared LED	14µ x 18PCS
Infrared Distance	20 m
IR Status	Auto-control
IR Power On	Auto-control
Ethernet	RJ-45 (10/100 Base - T)
Protocol	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
ONVIF	Supports ONVIF 2.4
P2P	Yes, Supports QR Code
PoE	Optional, Supports IEEE 802.3af
Video Delay	0.3 s (Within Lan)
Main Stream 1	1920 * 1080 @ 20 fps
Main Stream 2	1280 * 720 @ 20 fps
Tri-stream	352 * 288 @ 20 fps
IE Brower	IE8 - 11, Google Chrome (Lower Than Ver44), Firefox (Lower Than Ver53), Mac Safari (Lower Than Version 12)
Smart Phone	iPhone, iPad, Android, Android Pad
Day/Night	Color/ Black and White (IR-CUT)
Image Configuration	Saturation/Brightness/Contrast /Sharpness, Mirror, 3 DNR, White Balance, FLK (Flicker Control)
Corridor Pattern	Yes
Defog Mode	Yes
ROI	Yes
BLC	Yes
WDR	DWDR: 50 dB
Motion Detection	Yes
Privacy Masking	3 Rectangular Zones
Recording Mode	NVR/CMS/Web
Languages	Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch
Audio	Optional
SD Card Slot	Optional, Support Max 512GB
Housing	Plastic
Anti-cut Bracket	t Optional Wall Bracket
IR Cut Filter	YES
Operation Temperature	-20 ℃ - +60 ℃ RH 95% Max.
Ingress Protection	IP65
Power Source	DC 12 V ± 10%, 750 mA
Dimension	99(W) x 81(H) x 80(D)mm
Weight	300g

Model Number

PLC-432P-IR2 PR

Image Sensor

1/2.9" CMOS Sensor

Image Resolution

2 MP 1080p

Effective Pixels

1920 (H) * 1080 (V)

Video Compression

H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25 - 1/10000 s; NTSC 1/25 - 1/10000 s

Min. Illumination

0.01 Lux

S/N Ratio

≥52 dB

Scanning System

Progressive

Video Output

Network

Reset Button

Optional

Focal Length

2.8 mm

Focus Control

Fixed

Lens Type

Fixed

Pixels

2MP

Infrared LED

14µ x 18PCS

Infrared Distance

20 m

IR Status

Auto-control

IR Power On

Auto-control

Ethernet

RJ-45 (10/100 Base - T)

Protocol

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP

ONVIF

Supports ONVIF 2.4

P2P

Yes, Supports QR Code

PoE

Optional, Supports IEEE 802.3af

Video Delay

0.3 s (Within Lan)

Main Stream 1

1920 * 1080 @ 20 fps

Main Stream 2

1280 * 720 @ 20 fps

Tri-stream

352 * 288 @ 20 fps

IE Brower

IE8 - 11, Google Chrome (Lower Than Ver44), Firefox (Lower Than Ver53), Mac Safari (Lower Than Version 12)

Smart Phone

iPhone, iPad, Android, Android Pad

Day/Night

Color/ Black and White (IR-CUT)

Image Configuration

Saturation/Brightness/Contrast /Sharpness, Mirror, 3 DNR, White Balance, FLK (Flicker Control)

Corridor Pattern

Yes

Defog Mode

Yes

ROI

Yes

BLC

Yes

WDR

DWDR: 50 dB

Motion Detection

Yes

Privacy Masking

3 Rectangular Zones

Recording Mode

NVR/CMS/Web

Languages

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch

Audio

Optional

SD Card Slot

Optional, Support Max 512GB

Housing

Plastic

Anti-cut Bracket

t Optional Wall Bracket

IR Cut Filter

YES

Operation Temperature

-20 ℃ - +60 ℃ RH 95% Max.

Ingress Protection

IP65

Power Source

DC 12 V ± 10%, 750 mA

Dimension

99(W) x 81(H) x 80(D)mm

Weight

300g

Dome 2 MP
